Matlab-Java interface using a static control

I would like to welcome guest blogger Karthik Ponudurai. Today, Karthik will introduce an interesting technique for interfacing Java GUI to a Matlab application.

The current method of interfacing Java GUI controls and Matlab is by retrieving the underlying Java callback and assigning it to a Matlab callback, as shown in the following example:

% Create a Java button
jButton = javacomponent(javax.swing.JButton('click me'), [20,20,60,20], gcf);

% Assign a Matlab callback
hButton = handle(jButton, 'CallbackProperties');
set(hButton, 'ActionPerformedCallback', @myCallback);

% Matlab callback function
function myCallback(hObject, hEventData)
    % Insert your code here
end

This approach works fine for simple pure-Java GUI created using an IDE (for example, NetBeans or Eclipse) that only have a small number of controls. You can retrieve all the Java controls in Matlab and set the callbacks as shown in the above example.

Unfortunately, practical GUIs often contain numerous controls. Assigning each control a different Matlab callback can be quite tedious.

Using a callback switchyard function

A workaround to this problem can be achieved using an invisible/hidden static Java JButton. During Matlab initialization, assign a single callback for the static Java JButton:

% Return a reference to the GUI's static trigger button
triggerButton = statictrigger.triggerCls.getTrigger();

% Assign Matlab switchyard callback for triggerButton
buttonProps = handle(triggerButton, 'callbackproperties');
set(triggerButton, 'ActionPerformedCallback',@TriggerCallback);

When an event is triggered by any monitored control in the Java GUI, then within the Java code set the static button’s action command string to the desired Matlab callback name (a String) and invoke the static button’s doClick() method to trigger the Matlab TriggerCallback callback. Based on the action command string, this callback invokes the appropriate Matlab function. In this manner, Matlab’s TriggerCallback() acts as a switchyard function to the actual callback functions:

function TriggerCallback(hObject, hEventData)
   actionCmd = char( hObject.getActionCommand() );
   hgfeval(actionCmd, hObject, hEventData);
end

Note how the char function converts the Java action command (a java.lang.String object) into Matlab char array. The requested Matlab function is then dynamically invoked using Matlab’s semi-documented hgfeval function, which Yair will describe in another article later this month.

The next few sections will look into the sample application in more detail. This application can be downloaded from here.

Java GUI

Firstly, let’s look into the Java GUI:

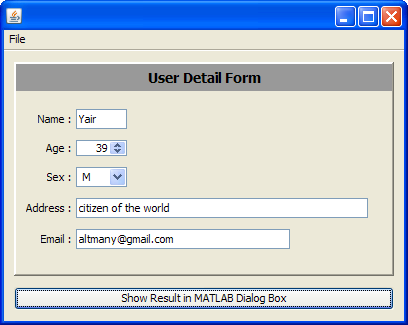

Main Java GUI

Main Java GUI

When the “Show Result in Matlab Dialog Box” button is clicked, the form information’s (Name, Age, Sex etc…) is saved in a hash map. This hash map is then serialized to a local file (C:\streamdata). Next, the static button’s action command string is set to ‘show’ and finally its doClick() method is invoked.

Below is the Java code corresponding to button click event:

private void showActionPerformed(java.awt.event.ActionEvent evt)
{
    // Add form values to hash map
    hMap.put(name.getName(), name.getText());
    hMap.put(age.getName(), age.getValue());
    hMap.put(sex.getName(), (String)sex.getSelectedItem());
    hMap.put(address.getName(), address.getText());
    hMap.put(email.getName(), email.getText());

    // Serialize hash map
    WriteObject(hMap);

    // Set trigger
    triggerCls.setTrigger(evt.getActionCommand());
}

Matlab callbacks

The Java GUI sources are compiled and packaged in the statictrigger.jar file. The Matlab StaticButtonTriggerExample.m source file adds the Java library to the dynamic Java classpath:

% Add dynamic java class path
javaclasspath([pwd '\javalib\statictrigger.jar']);

The main.m function contains the code for creating the Java GUI and assigning the static button callback:

% create the statictrigger object
app = statictrigger.app();

% Set static trigger button listener
triggerButton = statictrigger.triggerCls.getTrigger();
buttonProps = handle(triggerButton,'callbackproperties');
set(buttonProps,'ActionPerformedCallback', {@StaticButtonTriggerCallback, app});

% Show the Java Frame
app.setVisible(1);

statictrigger.triggerCls.getTrigger() is a static Java public method that returns the static button object, for which we assign our callback switchyard function.

The following is the StaticButtonTriggerCallback.m code, which displays the information in a Matlab message-box:

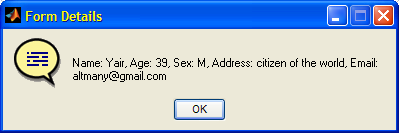

Matlab message-box triggered by the Java GUI

Matlab message-box triggered by the Java GUI

% Get action command string
actionCommand = src.getActionCommand();

% Read in serialized hash map
hashMap = app.ReadObject();

% Convert hash map to Matlab structure
data = Hash2Struct(hashMap);

% Display data in Matlab dialog box
msg = ['Name: ' char(hashMap.get('name')) ...
       ', Age: ' num2str(hashMap.get('age')) ...
       ', Sex: ' char(hashMap.get('sex')) ...
       ', Address: ' char(hashMap.get('address')) ...
       ', Email: ' char(hashMap.get('email')) ];
uiwait(helpdlg(msg, 'Form Details'));

You can download the example’s files from here. Extract the zip file, cd to the newly-generated StaticButtonTrigger folder, then invoke the StaticButtonTriggerExample.m function to run the example.
