Running VB code in Matlab

Matlab has a variety of interfaces to external programming languages. We can easily access ActiveX and COM-enabled applications from Matlab. Matlab also provides easy access to most COM/ActiveX functionalities, with a few exceptions and limitations.

Unfortunately, Microsoft’s VBScript is not one of the supported interface languages in Matlab. Therefore, if we need to use VBScript to customize ActiveX or COM functionality or appearance, we have a problem. In some cases, the ActiveX/COM application provides internal methods or properties that enables us to bypass the need for direct VBScript. But in other cases, VBScript is unavoidable.

Today I’ll show one such example, and how we can run the required VBScript code in Matlab. Note that the entire discussion is Microsoft oriented, and therefore only applicable to Microsoft Windows. And yes – not a single word today about Java…

The need

One of the standard controls in Microsoft Windows is ListViewCtrl (more precisely, MSComctlLib.ListViewCtrl.2), which provides a simple sortable table ActiveX. ListViewCtrl should be available on practically all Windows installations, in \Windows\System32\MSCOMCTL.OCX. It is an ancient control (over a decade old), yet still widely used in the ActiveX world.

While Matlab includes a built-in uitable function, it is sometimes beneficial to use ListViewCtrl instead. For example, ListViewCtrl enables easy setting of cell-specific tool-tips (ok, yes, this can also be done in uitables but it’s not as easy as in ListViewCtrl). ListViewCtrl also enables easy setting of row color and other goodies.

So ok – all of these can be overcome in uitable which is cross-platform (not just Windows-specific) and has some very important features missing from ListViewCtrl (perhaps most importantly, uitable doesn’t look a decade old, as ListViewCtrl does). Still, when maintaining legacy code you sometimes don’t have the luxury of using modern controls.

Indeed, I once needed to use ListViewCtrl, when I ran into today’s issue. Here’s a simple usage example:

% Set the control's position to be just inside
% the container's pixel position
initPos = getpixelposition(hParent) + [2,3,-5,-5];
[hActiveX,hContainer] = actxcontrol('MSComctlLib.ListViewCtrl.2', ...
                                    initPos, gcf, ...
                                    @lbEventHandler);
bgColor = get(hContainer,'backgroundColor');
bgColorDec = sum(floor(bgColor*256).*(256.^[0:2]));  %#ok

% Customize the control's appearance
set(hActiveX, 'view','lvwReport', 'BorderStyle','ccNone', ...
              'AllowColumnReorder',0, 'Appearance','ccFlat', ...
              'Sorted',0, 'Checkboxes',1, 'FullRowSelect',1, ...
              'HotTracking',1, 'HoverSelection',0, ...
              'HideColumnHeaders',0, 'BackColor',bgColorDec);

% Set the column headers
panelPos = hgconvertunits(gcf, ...
                          get(hContainer,'Position'), ...
                          get(hContainer,'Units'), ...
                          'centimeters', hParent);
panelWidth = panelPos(3)*955;  % [Microsoft units...]
colWidths = panelWidth * [0.2,0.2,0.6];
hColHeaders = get(hActiveX,'ColumnHeaders');
hColHeaders.Add(1,'Name','Name',colWidths(1));
hColHeaders.Add(2,'Type','Type',colWidths(2));
hColHeaders.Add(3,'Comment','Comment',colWidths(3));

% Add some data
blue = hex2dec('FF0000');  % reverse HTML hex color: BBGGRR
data = { 'Orange', 'Fruit',     'My favorite fruit'; ...
         'Onion',  'Vegetable', 'An onion a day keeps everybody else away'; ...
         'Apple',  'Fruit',     'An apple a day keeps the doctor away'; ...
         'Tomato', 'Vegetable', 'You say tomato, I say tomato, let''s call the whole thing off'};
for rowData = data'
    row = hActiveX.ListItems.Add([],rowData{1},rowData{1});
    row.ListSubItems.Add([],[],rowData{2},[],rowData{2});
    row.ListSubItems.Add([],[],rowData{3},[],rowData{3});
    row.ListSubItems.Item(1).ForeColor = blue;
end

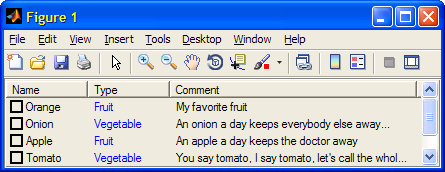

Unsorted ListViewCtrl

Unsorted ListViewCtrl

While most of ListViewCtrl’s features are accessible as internal properties and methods, one particular aspect requires VBScript. Which finally brings us to today’s topic:

Apparently, ListViewCtrl supports data sorting by simply clicking the column headers. Unfortunately, the sort icons (up/down arrows) have to be specified using an ImageListCtrl (MSComctlLib.ImageListCtrl.2) that holds the images. ImageListCtrl in turn requires using the internal built-in VB function LoadPicture() to load the images.

Unfortunately, Matlab does not enable direct invocation of VB code. So unless we find a way of calling VB’s internal LoadPicture() directly from Matlab, we cannot use sorting icons in our ListViewCtrl.

An ugly workaround

An ugly workaround for this problem is to modify the column name in run-time, so that clicking a column header (e.g., “Name”) will sort its data and also modify the column name to “Name ^” or “Name v”, depending on the sorting order:

% Event handler for ListBox item click
% Note: see documentation within %matlabroot%\toolbox\matlab\winfun\private\comeventcallback.m
function lbEventHandler(obj,eventId,item,eventArgs,eventName,varargin)
  try
    if (nargin<5) || ~ischar(eventName)
      return;   % can't tell which event this is
    end

    switch eventName
      case 'ItemClick',
        item.Checked = 1 - item.Checked;
        doSomethingUseful(item);

      case 'ItemCheck',
        % do nothing

      case 'ColumnClick',
        % Update the sorting order for the new (clicked) column
        obj.Sorted = 1;
        newSortKey = item.Index - 1;
        if strcmpi(obj.SortOrder,'lvwAscending') && (newSortKey == obj.SortKey)
          obj.SortOrder = 'lvwDescending';
          sortStr = ' v';
        else
          obj.SortOrder = 'lvwAscending';
          sortStr = ' ^';
        end

        % Update the column header text with the sort "icon" string
        if (obj.SortKey ~= newSortKey)
          oldColHeader = obj.ColumnHeaders.Item(obj.SortKey + 1);
          oldColHeader.Text = strrep(oldColHeader.Text,' v','');
          oldColHeader.Text = strrep(oldColHeader.Text,' ^','');
          newColHeader = obj.ColumnHeaders.Item(newSortKey + 1);
          newColHeader.Text = [newColHeader.Text sortStr];
        end
        obj.SortKey = newSortKey;

      otherwise,
        % do nothing
    end  % switch eventName
  catch
    handleError;
  end

end  % lbEventHandler

As can be seen, the result does not look very professional:

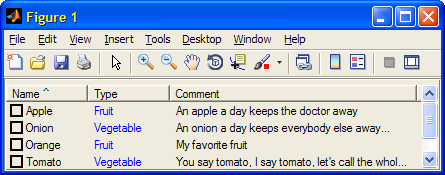

Sorted ListViewCtrl (ugly)

Sorted ListViewCtrl (ugly)

The solution

The solution to the problem is to use a not-well-known COM server component called ScriptControl (MSScriptControl.ScriptControl). By using ScriptControl’s eval() function we can call the built-in function and everybody’s happy:

% Load the images using ScriptControl
hScriptControl = actxserver('MSScriptControl.ScriptControl');
hScriptControl.Language = 'VBScript';
picUp   = hScriptControl.Eval('LoadPicture("..\Icons\UpIcon.gif")');
picDown = hScriptControl.Eval('LoadPicture("..\Icons\DownIcon.gif")');

% Now prepare an ImageList with these images
[hImageListActiveX, hContainer2] = actxcontrol('MSComctlLib.ImageListCtrl.2',initPos);
set(hContainer2,'Pos',[initPos(1:2),1,1]);  % hide the control
hImageListActiveX.ListImages.Add([],[],picUp);
hImageListActiveX.ListImages.Add([],[],picDown);

% Finally, attach the images to the ListViewCtrl headers
hActiveX.ColumnHeaderIcons = hImageListActiveX;

And now modify the sorting icon whenever a column header is clicked:

% Event handler for ListBox item click
% Note: see documentation within %ML\toolboc\matlab\winfun\private\comeventcallback.m
function lbEventHandler(obj,eventId,item,eventArgs,eventName,varargin)
  try
    if (nargin<5) || ~ischar(eventName)
      return;   % can't tell which event this is
    end

    switch eventName
      case 'ItemClick',
        item.Checked = 1 - item.Checked;
        doSomethingUseful(item);

      case 'ItemCheck',
        % do nothing

      case 'ColumnClick',
        % Update the sorting order for the new (clicked) column
        obj.Sorted = 1;
        newSortKey = item.Index - 1;
        if strcmpi(obj.SortOrder,'lvwAscending') && (newSortKey == obj.SortKey)
          obj.SortOrder = 'lvwDescending';
          sortIconIndex = 1;
        else
          obj.SortOrder = 'lvwAscending';
          sortIconIndex = 0;
        end

        % Remove sort icon from previous column
        setSortIcon(obj.hWnd,obj.SortKey,-1);

        % Add the sort icon to the clicked column header
        setSortIcon(obj.hWnd,newSortKey,sortIconIndex);

        % Update the previous column header text, to remove '...' due to the sort icon
        if (obj.SortKey ~= newSortKey)
          oldColHeader = obj.ColumnHeaders.Item(obj.SortKey + 1);
          oldColHeader.Text = oldColHeader.Text;
        end
        obj.SortKey = newSortKey;

      otherwise,
        % do nothing
    end  % switch eventName
  catch
    handleError;
  end

end  % lbEventHandler

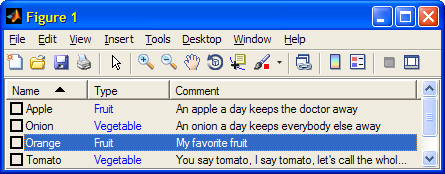

Sorted ListViewCtrl (much better)

Sorted ListViewCtrl (much better)

This code uses the MEX utility setSortIcon, which was developed (not by me, I can’t remember by whom) based on this. Simply unzip the setSortIcon.zip file into your favorite folder on the Matlab path. The zip file contains the c source code, that you can modify and mex-recompile if you wish.

Running VBA Macros

A related issue is running VBA macros from Matlab. This was very recently asked and answered on the CSSM forum, so I’ll just provide Peter Lorin Rasmussen’s code (read higher up in that CSSM thread for more details):

% Initiate active X component
powerPoint = actxserver('PowerPoint.Application');

% Visible
powerPoint.Visible=1;

% Minimize powerpoint
powerPoint.WindowState=2;

% Load presentations object
presentations = powerPoint.presentations;

% Open file
presentation = invoke(presentations,'open',fileName);

% Load VBA project
k = presentation.VBProject.Collection.get();

% Run Macro
k = invoke(presentation.application,'run',macroName,varargin{:});

% Close all
presentation.Save;
presentation.Close;
powerPoint.Quit;
powerPoint.delete;

Do you have any favorite code in another programming language that you run from Matlab? Don’t be shy – please tell us all about it in a comment below.
