Uitab colors, icons and images

A few months ago I published a post about Matlab’s semi-documented tab-panel functionality, where I promised a follow-up article on tab customizations. A reader of this blog asked a related question earlier today, so I decided it’s about time I fulfilled this promise.

As with most Matlab controls, the underlying Java component enables far greater customization than possible using plain Matlab. Today I will show three specific customizations. We start with a basic tab group, and get the underlying Java component:

% Prevent an annoying warning msg
warning off MATLAB:uitabgroup:OldVersion

% Prepare a tab-group consisting of two tabs
hTabGroup = uitabgroup; drawnow;
tab1 = uitab(hTabGroup, 'title','Panel 1');
a = axes('parent', tab1); surf(peaks);
tab2 = uitab(hTabGroup, 'title','Panel 2');
uicontrol(tab2, 'String','Close', 'Callback','close(gcbf)');

% Get the underlying Java reference (use hidden property)
jTabGroup = getappdata(handle(hTabGroup),'JTabbedPane');

Foreground & background tab colors

We can set the tab font color using setForeground() and setForegroundAt(), or via HTML. Note that setForegroundAt() overrides anything set by setForeground(). Also remember that Java uses 0-based indexing so tab #1 is actually the second tab:

% Equivalent manners to set a red tab foreground:
jTabGroup.setForegroundAt(1,java.awt.Color(1.0,0,0)); % tab #1
jTabGroup.setTitleAt(1,'<html><font color="red"><i>Panel 2');
jTabGroup.setForeground(java.awt.Color.red);

Unfortunately, the corresponding setBackgroundAt(tabIndex,color) method has no visible effect, and the Matlab-extended tabs keep their white/gray backgrounds. A similar attempt to modify the tab’s BackgroundColor property fails, since Matlab made this property unmodifiable (=’none’). A simple solution is to use a CSS background:

% Equivalent manners to set a yellow tab background:
jTabGroup.setTitleAt(0,'<html><div style="background:#ffff00;">Panel 1');
jTabGroup.setTitleAt(0,'<html><div style="background:yellow;">Panel 1');

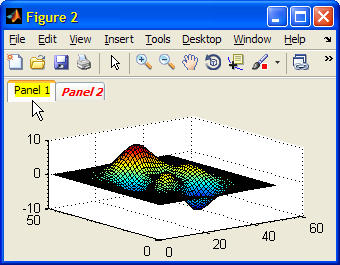

uitabgroup with non-default forground and background tab colors and fonts

uitabgroup with non-default forground and background tab colors and fonts

We can set the foreground text color using the CSS color directive. Similarly, we can also set a background gradient image for the tabs, using the CSS background-image directive. Which leads us to our next customization:

Icon images

Icons and sub-components can be added to the tabs. Unfortunately, for some reason that I do not fully understand, jTabGroup.setIconAt() has no apparent effect. The solution is to set our own custom control as the requested tab, and add our icon (or other customizations) to it. Here is a simple example:

% Add an icon to tab #1 (=second tab)
icon = javax.swing.ImageIcon('C:\Yair\save.gif');
jLabel = javax.swing.JLabel('Tab #2');
jLabel.setIcon(icon);
jTabGroup.setTabComponentAt(1,jLabel);	% Tab #1 = second tab

% Note: icon is automatically grayed when label is disabled
jLabel.setEnabled(false);
jTabGroup.setEnabledAt(1,false);  % disable only tab #1

tab with a custom icon (enabled)
tab with a custom icon (enabled)

tab with a custom icon (enabled & disabled)

Close buttons

Now let’s try a more complex example, of adding a close (‘x’) button to one of the tabs. Generalizing this code snippet is left as an exercise to the reader:

% First let's load the close icon
jarFile = fullfile(matlabroot,'/java/jar/mwt.jar');
iconsFolder = '/com/mathworks/mwt/resources/';
iconURI = ['jar:file:/' jarFile '!' iconsFolder 'closebox.gif'];
icon = javax.swing.ImageIcon(java.net.URL(iconURI));

% Now let's prepare the close button: icon, size and callback
jCloseButton = handle(javax.swing.JButton,'CallbackProperties');
jCloseButton.setIcon(icon);
jCloseButton.setPreferredSize(java.awt.Dimension(15,15));
jCloseButton.setMaximumSize(java.awt.Dimension(15,15));
jCloseButton.setSize(java.awt.Dimension(15,15));
set(jCloseButton, 'ActionPerformedCallback',@(h,e)delete(tab2));

% Now let's prepare a tab panel with our label and close button
jPanel = javax.swing.JPanel;	% default layout = FlowLayout
set(jPanel.getLayout, 'Hgap',0, 'Vgap',0);  % default gap = 5px
jLabel = javax.swing.JLabel('Tab #2');
jPanel.add(jLabel);
jPanel.add(jCloseButton);

% Now attach this tab panel as the tab-group's 2nd component
jTabGroup.setTabComponentAt(1,jPanel);	% Tab #1 = second tab

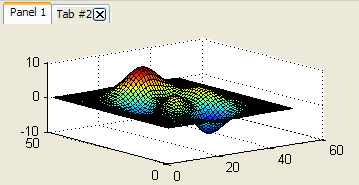

tab with an attached close button

tab with an attached close button

Next week’s article will conclude the series on Matlab’s uitab. Any particular customization you are interested in? Please do post a comment.
